Excel Charts : Polar Plot Chart. Polar Plot Created Using Radar Chart

| | Information Helpful? Why Not Donate.

TRY OUT: Smart-VBA | Code-VBA | Analyzer-XL | Downloader-XL | Trader-XL| More Free Downloads.. Best Value: Finance Templates Bundle

Also see our huge range ofCharting Software . Got a Excel Chart question? Use our FREEExcel Help

The polar plot is created using the Radar chart. This particular example requires 2 data series in order to generate the spiral effect.

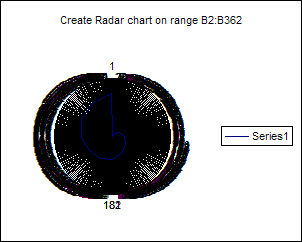

The angle and distance data is stored in a table with a named range. The radar chart has a point of each of the 360 degrees. Which points are plotted is determined by using a VLOOKUP function. For angles that are not contained within the data table the effect of the plot can be altered by charting either a zero or a #N/A.

In the Example workbookis a sheet containing data in order to build the following example.

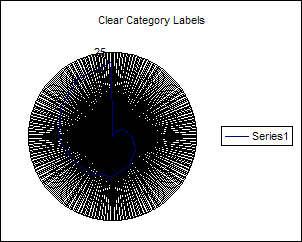

Clear the Category labels from the chart

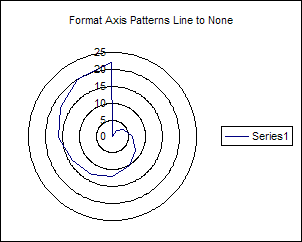

Remove all the lines by formatting the axis and setting the Line to None.

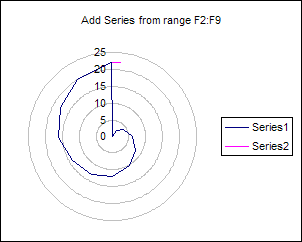

To construct the angle axis use a dummy data series. Add the information in range F2:F9 to the chart.

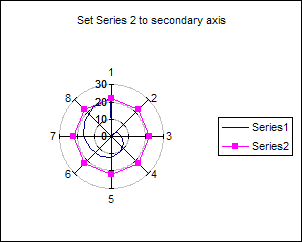

Move the dummy data series to the secondary axis.

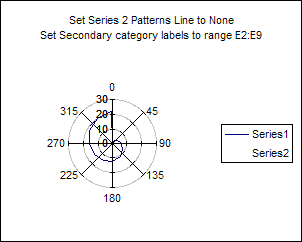

You can set the Line pattern to None on the dummy series to make in invisible. Set the secondary axis category labels to the range E2:E9

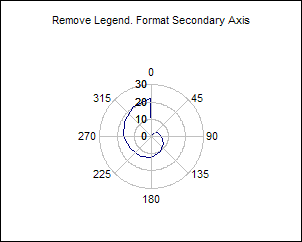

Remove the legend and format the secondary axis as requried.

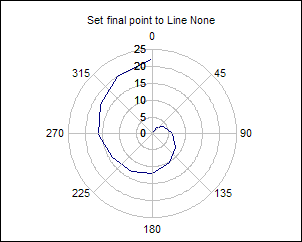

Depending on the plot you may wish to set the final points line style to None in order to remove the connecting line back to the zero.
To do this select the series and then use the right arrow to cycle through the points in the series. On the last points format the line to None.

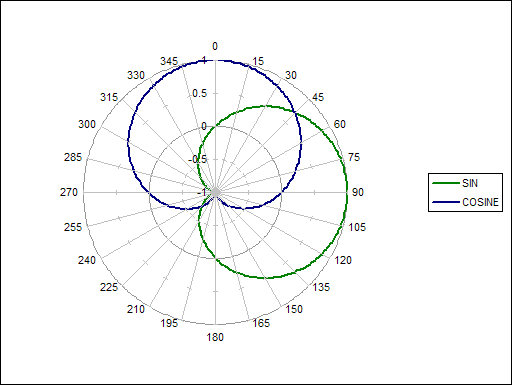

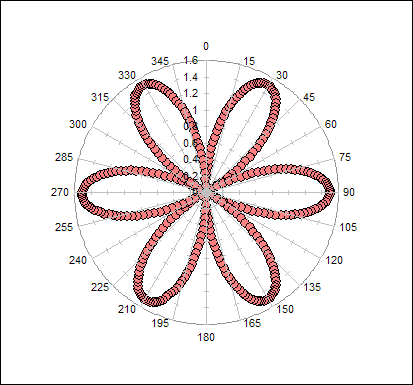

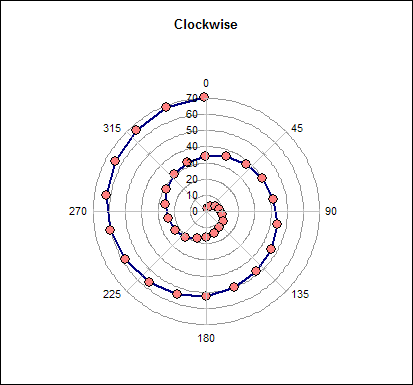

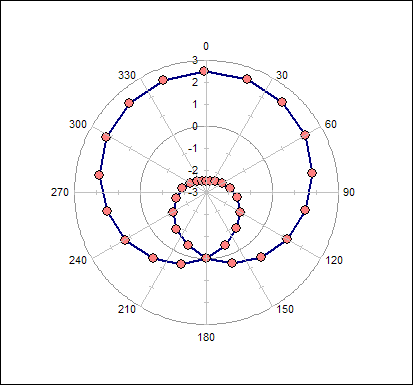

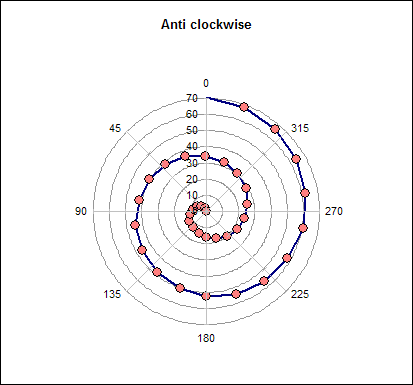

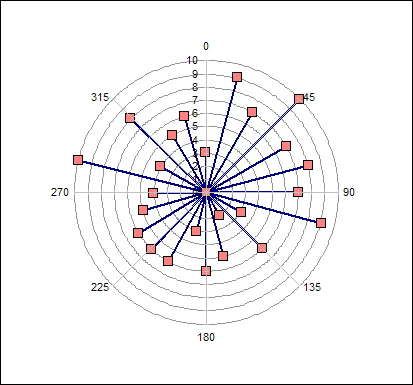

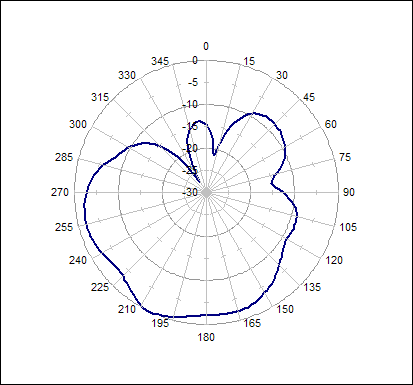

Example Plots

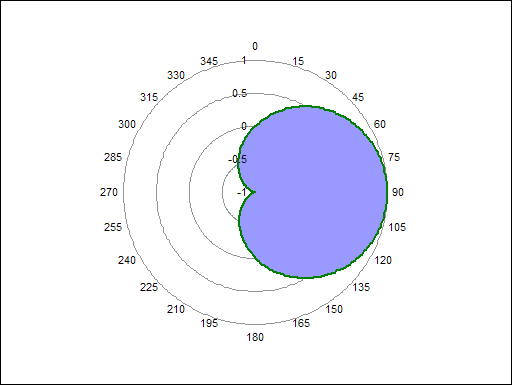

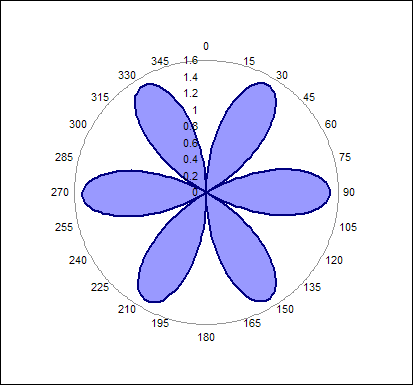

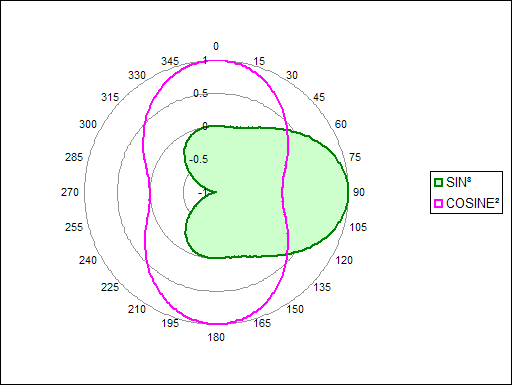

You can also use the filled radar plot

Download Example workbookwith data and formula
