Excel Charts : Positive/Negative Axis Labels on a Bar Chart

| | Information Helpful? Why Not Donate.

TRY OUT: Smart-VBA | Code-VBA | Analyzer-XL | Downloader-XL | Trader-XL| More Free Downloads.. Best Value: Finance Templates Bundle

Also see our huge range ofCharting Software. Got a Excel Chart question? Use our FREE Excel Help

This example uses a dummy data series to plot the category name either side of the axis depending on whether the bar is positive or negative.

Create a bar chart on the data in the range A1:B11

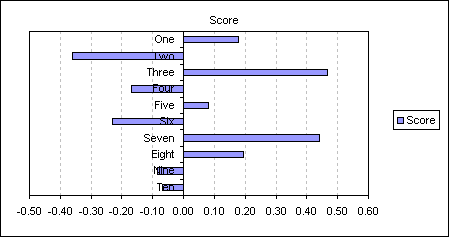

As you can see the category labels on the negative side of the axis are obscured by the bars.
For this example I have already reversed the plot order of the bars to match that of the data. See Plotting Bar Chart Categories in Reverse Order

 ABC
1 Score
2One0.18-0.36
3Two-0.360.47
4Three0.47-0.36
5Four-0.170.47
6Five0.08-0.36
7Six-0.230.47
8Seven0.44-0.36
9Eight0.20-0.36
10Nine-0.090.47
11Ten-0.070.47

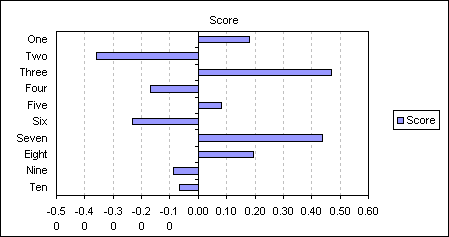

One possible way around this is to set category axis tick mark labels to the Low position.

But to keep the text next to the axis whilst not being obscured by the bars you can do the following.

Add the following formula to C2: =IF(B2<0,MAX($B$2:$B$11),MIN($B$2:$B$11))

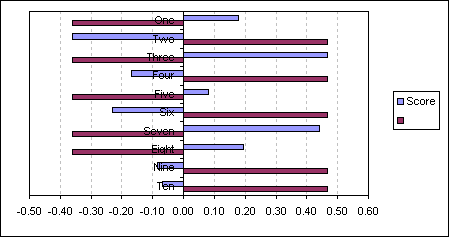

and then copy down to C11. Add this new data series to the chart

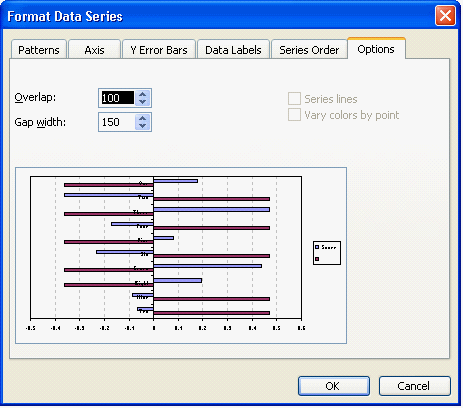

Double click either series and change the Overlap value to 100.

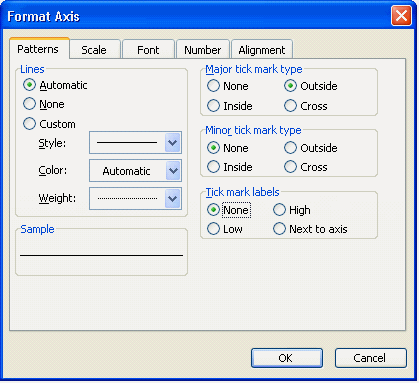

Now format the category axis to remove the axis labels by setting the Tick mark labels to None.

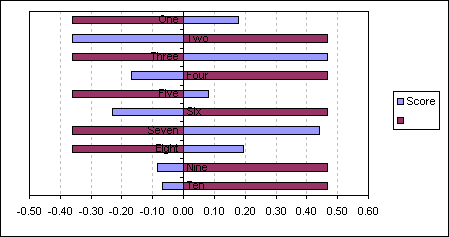

Apply Data labels to the new dummy series, displaying category name.

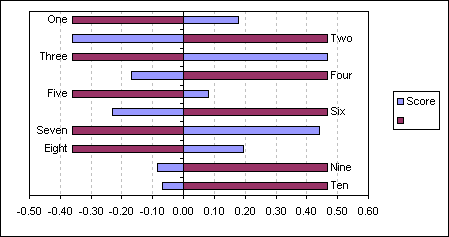

Change the data labels position to Inside Base.

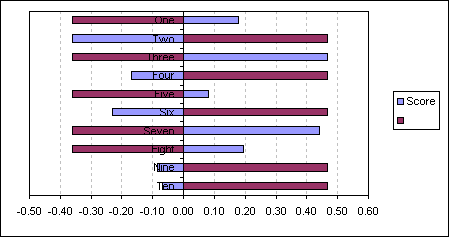

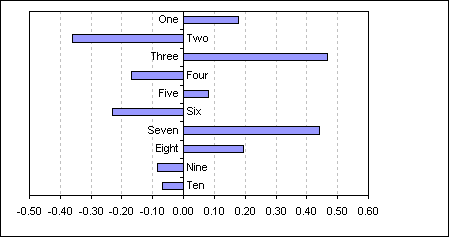

giving you a chart that displays the category name opposite the bar.

Finally set the Pattern Fill and Border to None for the dummy series. Remove the legend.

This technique will also work with column charts.

Back to Excel Charts Index
